Garmin G500H™

GARMIN G500H™

Glass panel for retrofit in helicopters.

The G500H's 10-inch wide bezel fits neatly into the panel space vacated by the standard six-pack of mechanical 3-inch flight instruments..
The complete G500H system includes a GDU620 display, remote mount GDC74 Air data Computer, GRS77 Attitude & Heading Reference System, GMU44 Magnetometer and GTP59 temperature probe.

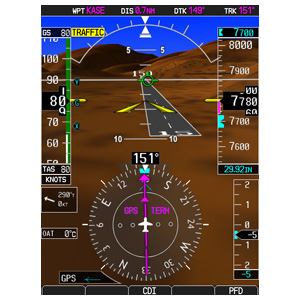

Optional Garmin SVT (Synthetic Vision technology) provides a “virtual reality” perspective view of ground and water features, obstacles and traffic.
Contact us for more details.

    G500H features

             ●  dual 6,5" TFT LCD displays, 640 x 480 pixels

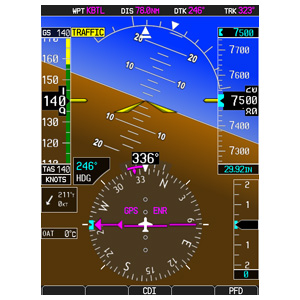

             ●  4,8" attitude indicator
             ●  HSI, with interfaces for Garmin GTN6XX/7XX-series navigator, GNC255A nav and ADF
             ●  optional SVT (Synthetic Vision technology)
             ●  MDF with terrain and obstacle databases
             ●  interfaces for traffic system, stormscope,...

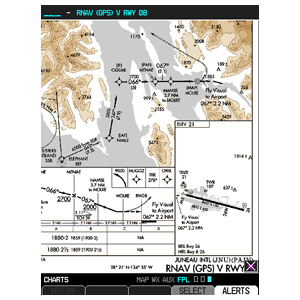

             ●  Garmin FliteCharts standard, Jeppesen Chartview optional
             ●  integrated digital Air Data Computer
             ●  integrated digital AHRS (Attitude & Heading Reference System) and magnetometer

    G500H specifications

             ●  dimensions GDU620 display: 170 (H) x 254 (W) x 82 (D) mm
             ●  display weight: 2,90 kg
             ●  GPS interfaces for GTN6XX and GTN7XX series
             ●  Nav interfaces for GTN6XX, GTN7XX and GNC255A
             ●  analog ADF interface
             ●  digital interface for HeliSAS autopilot
             ●  10-40 VDC
             ●  typical power consumption: 55 W

Garmin G1000H™

GARMIN G1000H™

The Garmin G1000H™ is a complete avionics solution and is only installed in new factory-built helicopters. The G1000H™ integrates flight instruments, naigation, communication, terrain, traffic, weather and engine instruments on two 10.4" LCD displays.
Lambert Aircraft Engineering is fully qualified and equipped for all maintenance and servicing of your Garmin G1000H™.
Contact us for more information.
