Dynon Avionics - SkyView



DYNON SKYVIEW

Glass cockpit for kit planes and high-end LSA

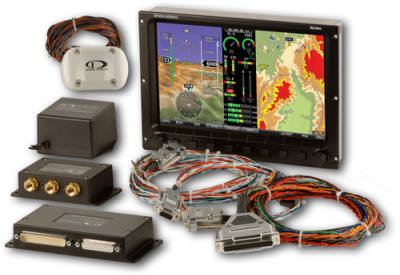

Dynon SkyView system components

Dynon SkyView is an integrated system for kit planes and high-end LSA. The modular configuration allows up to 4 displays in one system. Dynon SkyView integrated flight instruments, navigation, terrain and engine instruments.
There is a choice of either 7" or 10" high brightness displays.
An operational SkyView system consists of various modules which can be configures as required depending on the desired functionality and backup provisions. Future expansion provides for additional modules, such as navigation software, autopilot, integrated VHF com radio, ARINC 429 interfaces, integrated ATC transponder, etc...
Lambert Aircraft Engineering can assemble, wire and configure your entire Dynon SkyView system, and if desired, we can also install it in your aircraft.
Contact us for more details.

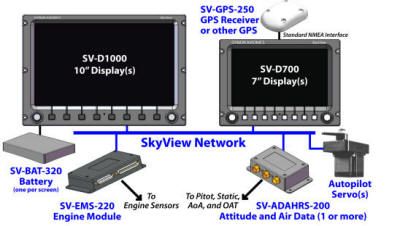

Dynon SkyView system layout





   Dynon SV-D700 Display

           ●  7" (178 mm) LCD TFT display
           ●  Resolution: 800 x 480 pixels
           ●  Max. brightness: 1200 nits
           ●  Wiring harness included
           ●  Dimensions: 19,4 cm (W) x 14,0 cm (H) x 5,4 cm (D)
           ●  Weight: 1,09 kg

          More info                        Price: contact us






   Dynon SV-D1000 Display

           ●  10" (254 mm) LCD TFT display
           ●  Resolution: 1024 x 600 pixels
           ●  Max. brightness: 1350 nits
           ●  Wiring harness included
           ●  Dimensions: 26,2 cm (W) x 19,4 cm (H) x 5,5 cm (D)
           ●  Weight: 1,36 kg

          More info                        Price: contact us


   Dynon SV-BAT-320 Backup battery

           ●  Optional backup battery (one battery per display)
           ●  Provides 1,5 to 2 hours backup power
           ●  Automatic charging during normal use
           ●  Dimensions: 8,4 cm (W) x 5,3 cm (H) x 9,9 cm (D)
           ●  Weight: 0,37 kg

          More info                        Price: contact us


   Dynon SV-ADAHRS-200 (primary)
   Dynon SV-ADAHRS-201 (backup)

           ●  Air Data/Attitude/Heading Reference System
           ●  SkyView requires min. 1 primary SV-ADAHRS-200
           ●  Optional SV-ADAHRS-201 as backup
           ●  OAT sensor SV-OAT-340 included
           ●  Dimensions: 12,0 cm (W) x 3,1 cm (H) x 6,6 cm (D)
           ●  Weight: 0,23 kg

          More info                     Price:  contact us



   Dynon SV-EMS-220

           ●  Engine Monitoring Module
           ●  Sensors not included (see below)
           ●  Dimensions: 16,1 cm (L) x 2,8 cm (H) x 7,6 cm (D)
           ●  Weight: 0,27 kg

          More info                        Price: contact us


   Dynon SV-EMS-221

           ●  Engine Monitoring Module for Rotax 912iS
           ●  Sensors not included (see below)
           ●  Dimensions: 16,1 cm (L) x 2,8 cm (H) x 7,6 cm (D)
           ●  Weight: 0,27 kg

          More info                        Price: contact us




   EMS sensor kits

           ●  All engine sensoren in 1 pack
           ●  Sensor kits available for the following engines:
                    Lycoming 4 & 6 cylinder, carbureted or fuel injected
                    Continental 4 & 6 cylinder, carbureted or fuel injected
                    ULPower UL260i
                    Rotax 912
           ●  Includes wiring harnesses


          More info                      Price: contact us


   Dynon SV-GPS-250 GPS receiver

           ●  WAAS GPS antenna and receiver
           ●  Not required when GPS data is sent to SkyView
                from another standard moving map
           ●  Dimensions: 5,6 cm (W) x 1,9 cm (H) x 8,7 cm (D)
           ●  Weight: 0,19 kg

          More info                        Price: contact us


   Dynon SV-MAP-270 Navigation Software

           ●  Optional software with navigation functions
           ●  Enables SkyView to be used as moving map


          More info                        Price: contact us





   Dynon SV-ARINC-429

           ●  ARINC 429 interface for IFR certified GPS
           ●  Required for interfacing Garmin GNS430/530
               or GTN650/750 with SkyView system
           ●  Dimensions: 12,1 cm (W) x 2,8 cm (H) x 6,6 cm (D)
           ●  Weight: 0,21 kg

           More info                        Price: contact us


   Dynon SV-XPNDR-261

           ●  Remote Mode S transponder for Dynon SkyView
           ●  Mode A/C/S transponder, according to
               ED-73B, class 2, Level 2es, extended squitter
           ●  ETSO certified to 15000 ft, < 175 kt
           ●  150 W transmit power (75 W at antenna)
           ●  Dimensions: 14,1 cm (W) x 4,5 cm (H) x 6,2 cm (D)
           ●  Weight: 0,45 kg

           More info                        Price: contact us


   Dynon SV-XPNDR-262

           ●  Remote Mode S transponder for Dynon SkyView
           ●  Mode A/C/S transponder, according to
               ED-73B, class 1, Level 2es, extended squitter
           ●  ETSO certified to 35000 ft, < 250 kt
           ●  250 W transmit power (150 W at antenne)
           ●  Dimensions: 14,1 cm (W) x 4,5 cm (H) x 6,2 cm (D)
           ●  Weight: 0,45 kg

           More info                        Price: contact us




     Contact us for technical advice, choice of servos, accessories or installation in your aircraft!!!

   Dynon Autopilot servo's

           ●  Expand your EFIS with autopilot capability
           ●  Configuration with 1 or 2 servos
           ●  Flies magnetic heading, GPS ground track or GPS NAV
           ●  Altitude hold function
           ●  Different servo models available to suit specific aircraft
           ●  Weight per servo: 0.90 - 1.80 kg (depending on model)
           ●  servo installation hardware optional

          More info                        Price: contact us



   Dynon SkyView Network Cables

          ●  'Plug & Play' prewired cables for interfacing of
               the different SkyView modules
          ●  Aircraft grade wiring
          ●  Professional quality, easy to install

          More info                        Price: contact us




  Pitot/AoA probe

           ●  Affordable probe for Pitot and Angle of Attack
           ●  Fully compatible with Dynon EFIS or FlightDEK
           ●  Heated and unheated versions available
            ● Electronic temperature control (heated version)
           ●  Weight: approx. 0,30 kg

         More info                      Price: contact us
